Triple chamber H-cell membrane sealed electrochemical reactor, capacity 30 to 500 ml

SKU: TCHMS

Price range: $260.00 through $577.00

Add to Cart
Triple chamber H-cell membrane sealed electrochemical reactor, capacity 30 to 500 ml
Triple chamber H-cell membrane sealed electrochemical reactor, capacity 30 to 500 ml
$260.00 – $577.00Price range: $260.00 through $577.00

Worldwide shipping-Global Delivery 5-12 Days

  • Secure PayPal Checkout – 100% safe & protected
  • Zero-Breakage Guarantee – Free replacement
  • Reliable Global Shipping – 100+ countries
  • 30-Day Easy Returns – Risk-free shopping
  • Expert Customization – Tailored to your needs
Guaranteed Safe Checkout

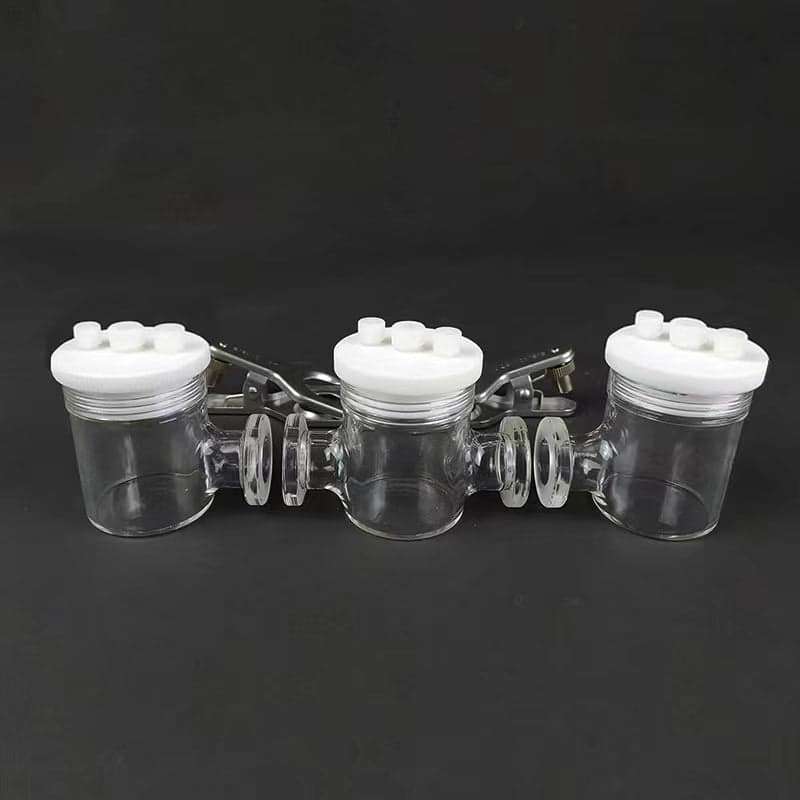

Triple-chamber H-cell electrochemical reactor with membrane-sealed design, ideal for advanced electrochemical experiments such as ion exchange, redox reactions, or microbial fuel cell studies. Each chamber is constructed from chemical-resistant borosilicate glass 3.3 and sealed using PTFE lids and O-rings for leak-proof performance. Multiple ports allow flexible setup for electrodes and gas flow.

Key Features:

  • Capacity: 30 to 500 ml per chamber

  • Material: Borosilicate Glass 3.3

  • Includes 3 PTFE lids

  • 9 sealing screws: 3 electrode ports, 6 gas ports

  • 12 O-ring sealings: for chamber, electrode, and gas ports

  • 2 stainless steel clamps for secure assembly

  • 6 gas inlet tubes included

  • Designed for membrane-sealed electrochemical applications

Volumes of a chamber in mlChamber Size (Diameter x Height in mm)Electrodes Holes (Quantity x Diameter in mm)Gas Holes (Quantity x Diameter in mm)Diameter of Membrane channel in mm
30ml – 30ml-30mlΦ35 x40 mm3xΦ6.2 mm6xΦ3.1 mm15 mm
50ml-50ml-50mlΦ45 x40 mm3xΦ6.2 mm6xΦ3.1 mm15 mm
100ml-100ml-100mlΦ50×60 mm3xΦ6.2 mm6xΦ3.1 mm15 mm
150ml-150ml-150mlΦ60×62 mm3xΦ6.2 mm6xΦ3.1 mm15 mm
200ml-200ml-200mlΦ60x80mm3xΦ6.2 mm6xΦ3.1 mm15 mm
250ml-250ml-250mlΦ70×74 mm3xΦ6.2 mm6xΦ3.1 mm15 mm
300ml-300ml-300mlΦ70x88mm3xΦ6.2 mm6xΦ3.1 mm15 mm
500ml-500ml-500mlΦ90×90 mm3xΦ6.2 mm6xΦ3.1 mm15 mm

Additional information

WeightN/A
Capacity: No selection

30 ml – 30 ml – 30 ml, 50 ml – 50 ml – 50 ml, 100 ml – 100 ml – 100 ml, 150 ml – 150 ml – 150 ml, 200 ml – 200 ml – 200 ml, 250 ml – 250 ml – 250 ml, 300 ml – 300 ml – 300 ml, 500 ml – 500 ml – 500 ml
