Thin layer Quartz spectroelectrochemical cell, Optical path length 0.5 mm to 1 mm

Quartz spectroelectrochemical cell designed for simultaneous electrochemical and spectroscopic measurements. Compatible with standard UV-vis spectrometers. Features a PTFE lid and thin-layer design with optical path lengths of 0.5 mm and 1.0 mm. Ideal for high-sensitivity experiments and in situ analysis.

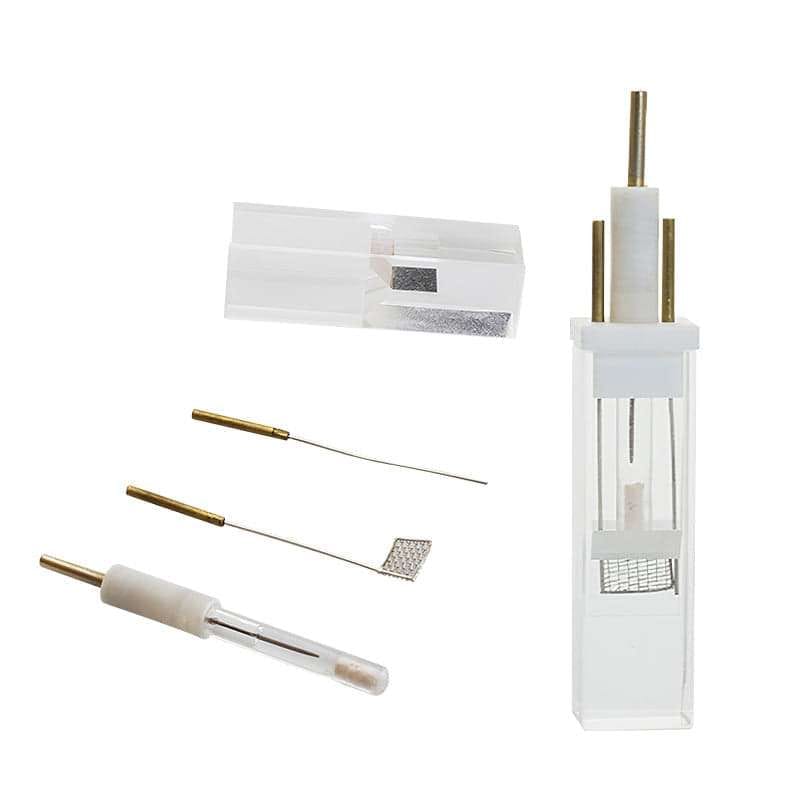

Includes a 6 × 7 mm platinum gauze working electrode, a 0.5 × 37 mm platinum counter electrode, and a silver/silver chloride (Ag/AgCl) reference electrode.

Key Features:

• Quartz cuvette for UV-vis compatibility

• Two optical path length options: 0.5 mm and 1.0 mm

• PTFE lid ensures chemical resistance and secure sealing

• Platinum gauze working electrode (6 × 7 mm)

• Platinum wire counter electrode (0.5 × 37 mm)

• Ag/AgCl reference electrode

• Suitable for standard UV-vis spectrometers
