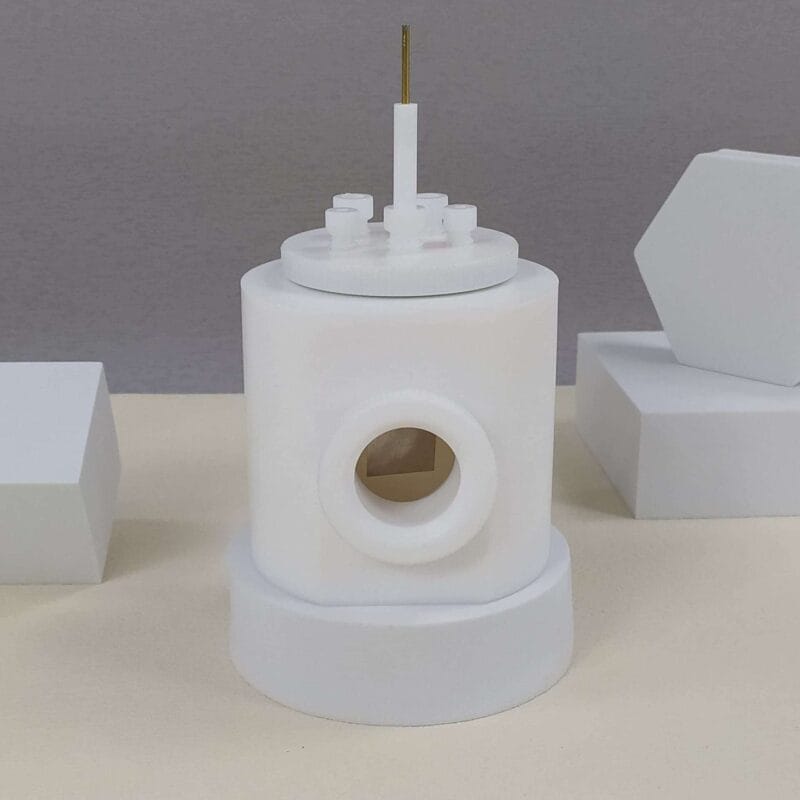

Sealed Photoelectrochemical Cell, Capacity 50 to 500 ml

This sealed photoelectrochemical cell (PEC cell) is designed for advanced photocatalytic and electrochemical studies under controlled conditions. The reactor body is made of borosilicate glass 3.3 or PTFE, offering excellent chemical and thermal resistance.

The PTFE lid is equipped with 3 holes ( 6.2 mm) and 2 holes ( 3.1 mm), providing versatile connections for electrodes, reference probes, or gas inlet tubes. The cell is secured with 5 sealing screws and 6 O-rings, ensuring leak-tight operation even under demanding experimental conditions.

A quartz glass optical window allows direct light irradiation, making this cell ideal for photoelectrochemical measurements, photocatalysis, and solar-to-fuel conversion research. With a capacity of 50 to 500 ml, it is suitable for both small-scale and medium-scale laboratory setups.

Key Features:

• Type: Sealed photoelectrochemical reactor cell
• Capacity: 50 ml – 500 ml
• Cell Material: Borosilicate glass 3.3 or PTFE
• Lid: PTFE lid with 5 sealing screws
• Holes: 3( 6.2 mm), 2 (3.1 mm )(for gas inlet/electrodes)
• Sealing: 6 O-rings for airtight performance
• Window: Quartz glass optical window for light irradiation
• Application: Photoelectrochemistry, photocatalysis, solar energy conversion, hydrogen/oxygen evolution
