PTFE Lined Hydrothermal Synthesis Reactor, 25-500 ml

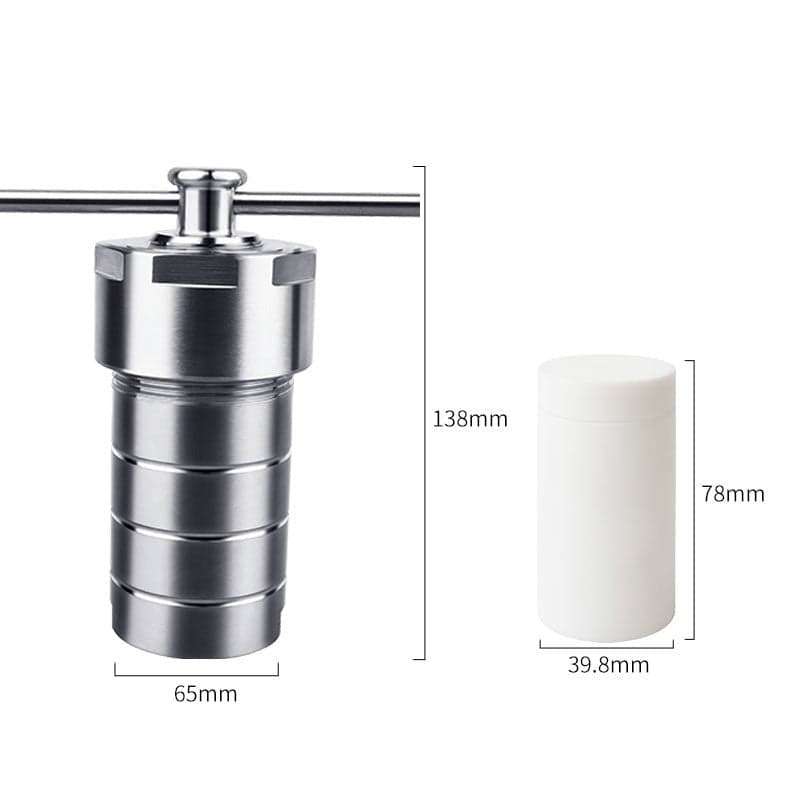

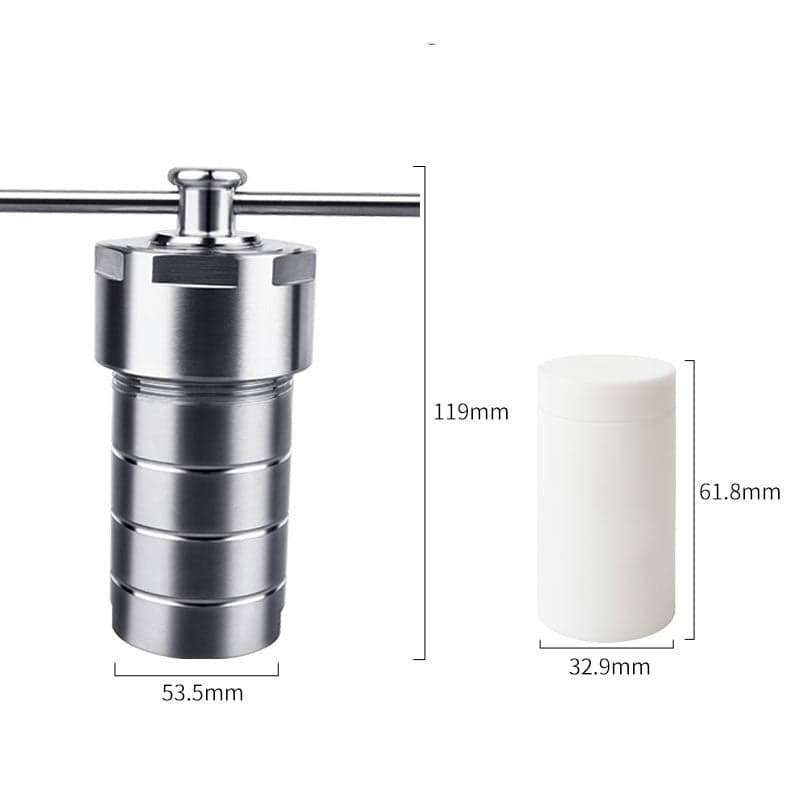

This hydrothermal synthesis reactor features a PTFE-lined vessel housed in a durable stainless steel body, designed for high-pressure, high-temperature reactions under sealed conditions.

It offers excellent chemical resistance, ideal for applications such as crystal growth, material synthesis, and solvothermal processing in research laboratories.

The reactor is available in volumes ranging from 25 ml to 500 ml, with a maximum operating temperature of 230 °C and pressure resistance up to 3 MPa. The recommended safe working temperature is between 180 °C-220°C, ensuring both performance and safety in routine use.

Key Features:

• PTFE-lined vessel for excellent chemical compatibility
• Durable external stainless steel shell
• Volume range: 25 / 50 / 100 / 200 / 300 / 400 / 500 ml
• Max temperature: 230 °C, Safe use: 180 °C-220 °C
• Max pressure: 3 MPa
• Ideal for sealed high-temperature synthesis
• Easy assembly and reusable design for repeated laboratory use

Note: Ensure gradual heating and cooling to avoid thermal shock. Do not use with HF (hydrofluoric acid).
