This high pressure reactor features a mechanical electric stirrer designed for high-torque mixing in demanding laboratory reactions. With a working capacity of 50 ml to 500 ml, it is built from 304 stainless steel for excellent pressure and corrosion resistance.

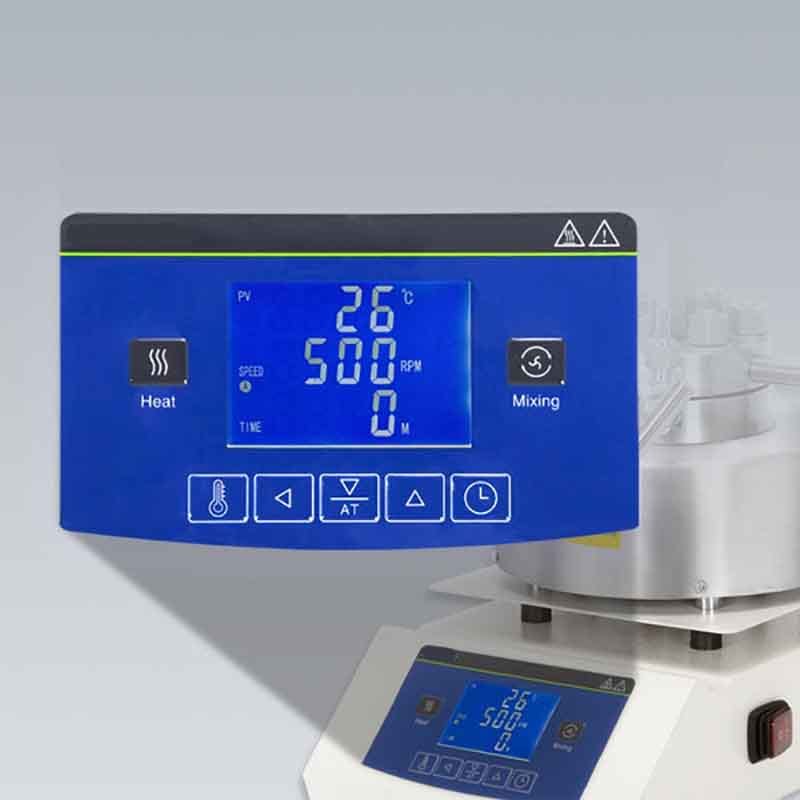

Equipped with an LCD digital display, the system shows real-time stirring speed and temperature, with intuitive push-button controls for parameter adjustment. A built-in pressure gauge and safety relief valve provide safe operation under pressure.
Key Features:
- Capacity: 50?C500 ml
- High-torque electric mechanical stirrer for powerful mixing
- Durable 304 stainless steel construction
- LCD screen displays speed (RPM) and temperature (℃)
- Push-button control for precise parameter adjustment
- Integrated pressure gauge and explosion relief valve for safety
- Ideal for synthesis, catalysis, and high-pressure chemical reactions
| Nominal volume | 50 ml | 100 ml | 250 ml | 500 ml |
| Material | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Max Temperature | 270 | 300 | 350 | 350 |
| Heating and cooling rates | <5/min | <5/min | <5/min | <5/min |
| Max. Pressure | 22 Mpa | 22 Mpa | 22 Mpa | 22 Mpa |
| Mixer speed | 0-1000r/min | 0-1000 r/min | 0-1000 r/min | 0-1000 r/min |
| Heating Power | 0.7 Kw | 0.7 Kw | 0.7 Kw | 0.7Kw |
| Mixer | electric stirrer | electric stirrer | electric stirrer | electric stirrer |
| Valve | 2 | 2 | 2 | 2 |
| Diameter of hole for Thermometer | 4 mm | 4 mm | 4 mm | 4 mm |
| Net Weight | 11.5 KG | 14.5 KG | 18KG | 22 KG |
| Outer Size (W x D x H) | 310x370x370 mm | 330x330x545 mm | 330x330x545 mm | 350x330x590 mm |
